10ft ISO container tanks for rental & lease

We offer 10ft ISO tank container leasing to specialized gas transportation companies, cryogenic gas manufacturers and on, and offshore nitrogen service companies, along with other end-users.

TANK SPECIFICATION: 10 FOOT – 6 BAR

KEY DATA: 10 FOOT, 7.760 LITRE, 6 BAR, T75 ISO TANK CONTAINER

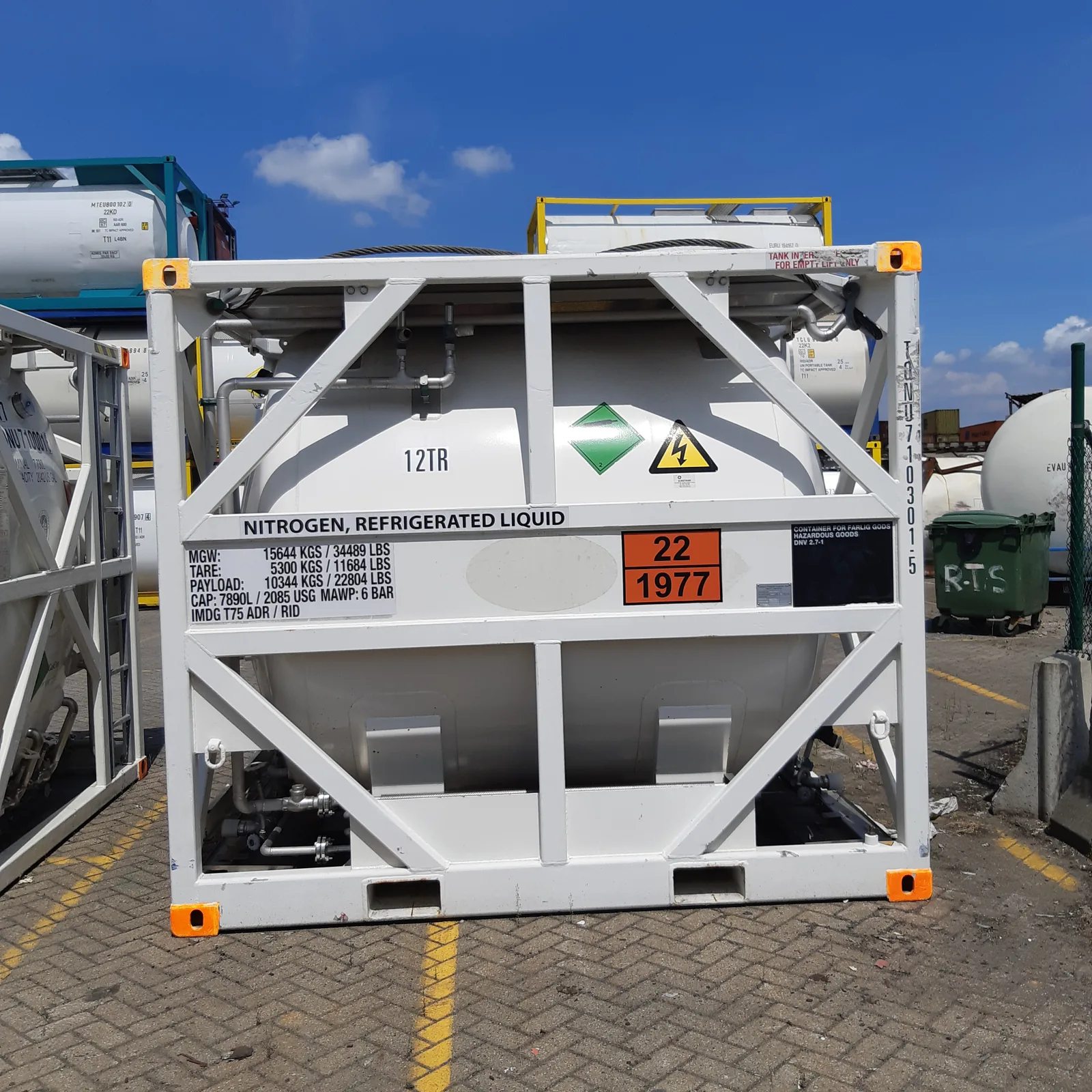

The 10 foot ISO container is designed as a double-wall containment tank with multi-layer insulation under vacuum. It’s integrated into a frame-type structure with ISO-corner castings on 10′ x 8′ x 8′ 6″ dimensions.

The design and manufacture of our 10ft tank containers are in accordance with the IMDG regulations for UN-type T75 “Portable Tanks for Liquified Gases”.

Contact us for more in depth information

TECHNICAL SPECIFICATIONS

  • Suitable for: Liquid nitrogen (LIN), Liquid Oxygen (LOX), Liquid Argon (LAR), Liquid Natural Gas (LNG)
  • Nominal water volume: 7,760 L/ 2,050 USG
  • Maximum Allowable Working Pressure: 6 bar/  87psi
  • Holding times:  Depending on the products loaded. please contact us for more in-depth information.

    • Note that the figures for holding times are applicable only if the tank container is in optimum technical condition and proper loading conditions and procedures are applied, such as :
      –         pre-cooled vessel
      –         product temperature close to boiling point
      –         optimum loading operation and filling level
  • Tare Weight: 5,450 kg/ 12,015 lbs
  • Maximum permissible gross mass: 15,000 kg/ 33,000 lbs
  • Maximum payload: 9,600 kg/ 21,165 lbs
  • Insulation: Vacuum with multi-layer insulation
  • :10 ft iso container dimensions
    • Height: 2.591 mm (8’6″)
    • Overall length:  3.048 mm (10′)
  • ISO-corner castings: 10′ x 8′ x 8 ‘6″ ISO dimensions
  • Approvals: USDOT/ADR/RID/IMDG/EN 13530 2002/ASME/MITI/Transport Canada
  • Pump or meter: Optional

Materials

  • Inner vessel: EN 10028-7 1.4311 304LN Stainless steel
  • Outer vessel: EN 10210 S355 J2H / Supraform TM 380
  • Piping panel: Stainless steel type ASTM TP 316(L)Pressure build-up vaporiser
  • Pressure build-up vaporiser: Aluminium finned tubes with stainless steel liner.

Whether you’re interested in specialised tank leasing or isotainer tank rental, contact us for more in-depth information and to find out why you should choose us over other iso tank container leasing companies.
